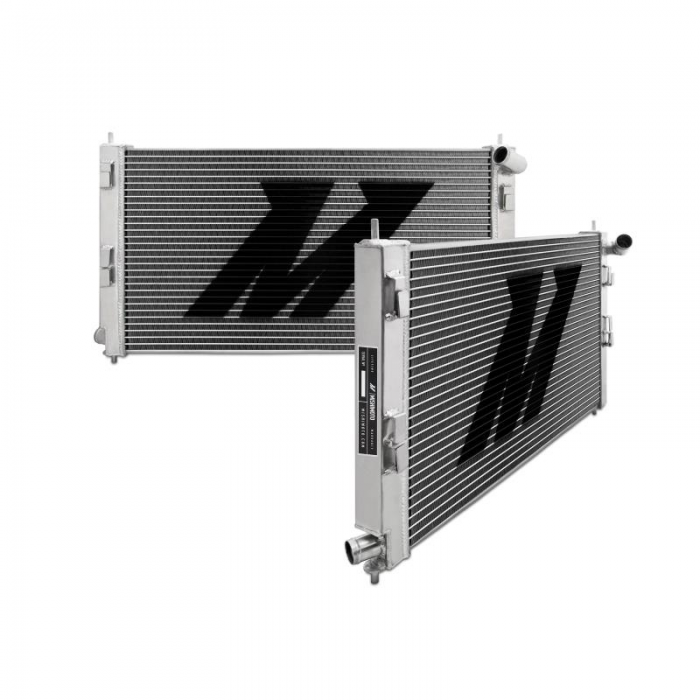

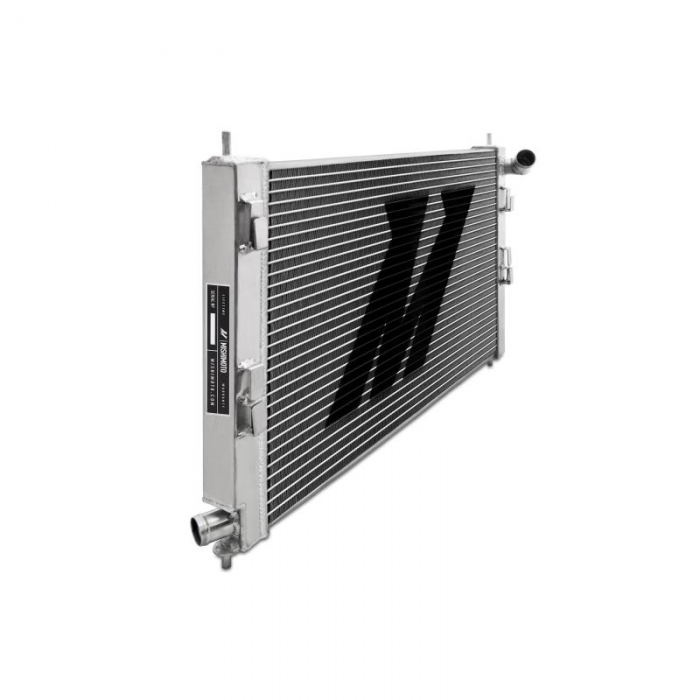

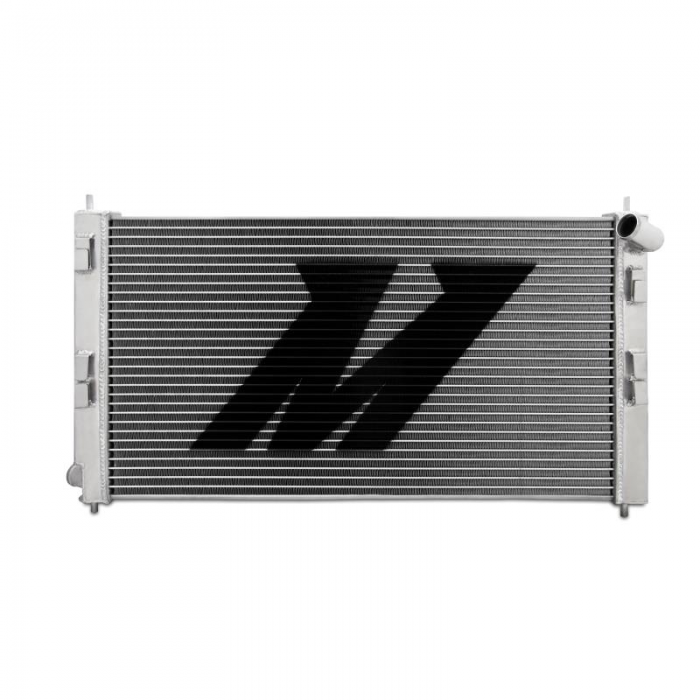

MISHIMOTO - X-LINE PERFORMANCE ALUMINUM RADIATOR, EVO X
#MMRAD-EVO-10X
PRODUCT FEATURES
- Direct fit for the 2008-2015 Mitsubishi Lancer Ralliart & Evolution X
- Premium radiator has 3-row core for improved strength and reliability.
- 16% thinner-than-stock tubes allow for more surface contact, increasing cooling efficiency.
- Greater density of rows for higher cooling capacity.
- More contact points for additional heat transfer.
- 3-row design creates more air turbulence, maximizing cooling efficiency.
- Includes magnetic drain plug
- Lifetime warranty
DESCRIPTION
Mishimoto developed the first after-market performance aluminium radiator available for the Evo X. Now Mishimoto has created an X-Line radiator for the Evo 10 that will provide up to 25% larger core. Built with 3 rows, this radiator is the ideal upgrade from your stock Evolution radiator. Having a turbo set-up produces a great amount of heat; by replacing your current Evolution 10 radiator with a Mishimoto X-Line Radiator you will undoubtedly notice a cooler, more efficient running engine. The new application is specifically designed and engineered as a direct OEM fit with no modification required for easy installation. Looking for even more cooling efficiency? Check out the Mishimoto Lancer Evolution X Silicone Hose Kit.
*Also fits:
2010 Mitsubishi Lancer Ralliart
As with every Mishimoto aluminium radiator, this radiator includes the Mishimoto Lifetime Warranty.
PURCHASE INCLUDES
Mishimoto Radiator
Magnetic Drain Plug
Mishimoto Lifetime Warranty
VEHICLE SPECS
| ENGINE CODES | 4B11T 4G69 4B12 6B31 (Outlander) |
| CHASSIS CODES | CZ4A |
| FITS | Mitsubishi Evolution X GSR 08+Mitsubishi Evolution MR 08+Mitsubishi Lancer Ralli-Art 09+Mitsubishi Outlander ES 07-09Mitsubishi Outlander LS 07-08Mitsubishi Outlander SE 08-09 Mitsubishi Outlander XLS 07-09 |
PRODUCT SPECS
| MATERIAL | Aluminum |
| OVERALL HEIGHT | 32.5 |
| DPI | 2978 |
| DRAIN PLUG LENGTH | 0.047 |
| DRAIN PLUG THREAD SIZE | (M16) .06 |
| OVERALL LENGTH | 19.3 |
| TANK WALL THICKNESS | 0.08 |
| OUTLET | 1.48 |
| ROWS | 3 |
| INLET | 1.48 |
| DUAL PASS | False |
| OVERALL WIDTH | 2.5 |
| CORE LENGTH | 27.56 |
| CORE HEIGHT | 16.06 |
| CORE THICKNESS | 2 |
| OVERALL LENGTH (IN) | 19.30 |
| OVERALL HEIGHT (IN) | 32.50 |
| OVERALL WIDTH (IN) | 2.50 |
| ROWS | 3 |
